OSI 7 Layers Model

Layer 7: Application Layer

• Defines interface to user processes for communication and data transfer in network

• Provides standardized services such as virtual terminal, file and job transfer and operations

Layer 6: Presentation Layer

• Masks the differences of data formats between dissimilar systems

• Specifies architecture-independent data transfer format

• Encodes and decodes data; Encrypts and decrypts data; Compresses and decompresses data

Layer 5: Session Layer

• Manages user sessions and dialogues

• Controls establishment and termination of logic links between users

• Reports upper layer errors

Layer 4: Transport Layer

• Manages end-to-end message delivery in network

• Provides reliable and sequential packet delivery through error recovery and flow control mechanisms

• Provides connectionless oriented packet delivery

Layer 3: Network Layer

• Determines how data are transferred between network devices

• Routes packets according to unique network device addresses

• Provides flow and congestion control to prevent network resource depletion

Layer 2: Data Link Layer

• Defines procedures for operating the communication links

• Frames packets

• Detects and corrects packets transmit errors

Layer 1: Physical Layer

• Defines physical means of sending data over network devices

• Interfaces between network medium and devices

• Defines optical, electrical and mechanical characteristics

The OSI, or Open System Interconnection, model defines a networking framework for implementing protocols in seven layers. Control is passed from one layer to the next, starting at the application layer in one station, proceeding to the bottom layer, over the channel to the next station and back up the hierarchy.

What lurks at OSI Layer 8?

By Steve Taylor and Joanie Wexler
Network World Wide Area Networking Newsletter, 01/28/03

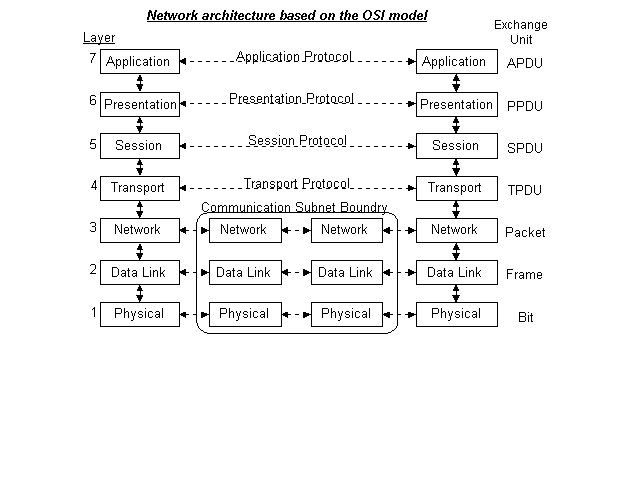

The Seven Layers Model

Seven layers are defined:

7) Application : Provides different services to the applications

6) Presentation : Converts the information

5) Session : Handles problems which are not communication issues

4) Transport : Provides end to end communication control

3) Network : Routes the information in the network

2) Data Link : Provides error control between adjacent nodes

1) Physical : Connects the entity to the transmission media

The Application Layer

The application layer contains a variety of protocols that are commonly needed. For example, there are hundreds of incompatible terminal types in the world. Consider the plight of a full screen editor that is supposed to work over a network with many different terminal types, each with different screen layouts, escape sequences for inserting and deleting text, moving the cursor, etc.

One way to solve this problem is to define an abstract network virtual terminal for which editors and other programs can be written to deal with. To handle each terminal type, a piece of software must be written to map the functions of the network virtual terminal onto the real terminal. For example, when the editor moves the virtual terminal's cursor to the upper left-hand corner of the screen, this software must issue the proper command sequence to the real terminal to get its cursor there too. All the virtual terminal software is in the application layer.

Another application layer function is file transfer. Different file systems have different file naming conventions, different ways of representing text lines, and so on. Transferring a file between two different systems requires handling these and other incompatibilities. This work, too, belongs to the application layer, as do electronic mail, remote job entry, directory lookup, and various other general-purpose and special-purpose facilities.

The Presentation Layer

The presentation layer performs certain functions that are requested sufficiently often to warrant finding a general solution for them, rather than letting each user solve the problems. In particular, unlike all the lower layers, which are just interested in moving bits reliably from here to there, the presentation layer is concerned with the syntax and semantics of the information transmitted.

A typical example of a presentation service is encoding data in a standard, agreed upon way. Most user programs do not exchange random binary bit strings. They exchange things such as people's names, dates, amounts of money, and invoices. These items are represented as character strings, integers, floating point numbers, and data structures composed of several simpler items. Different computers have different codes for representing character strings, integers and so on. In order to make it possible for computers with different representation to communicate, the data structures to be exchanged can be defined in an abstract way, along with a standard encoding to be used "on the wire". The job of managing these abstract data structures and converting from the representation used inside the computer to the network standard representation is handled by the presentation layer.

The presentation layer is also concerned with other aspects of information representation. For example, data compression can be used here to reduce the number of bits that have to be transmitted and cryptography is frequently required for privacy and authentication.

The Session Layer

The session layer allows users on different machines to establish sessions between them. A session allows ordinary data transport, as does the transport layer, but it also provides some enhanced services useful in a some applications. A session might be used to allow a user to log into a remote time-sharing system or to transfer a file between two machines.

One of the services of the session layer is to manage dialogue control. Sessions can allow traffic to go in both directions at the same time, or in only one direction at a time. If traffic can only go one way at a time, the session layer can help keep track of whose turn it is.

A related session service is token management. For some protocols, it is essential that both sides do not attempt the same operation at the same time. To manage these activities, the session layer provides tokens that can be exchanged. Only the side holding the token may perform the critical operation.

Another session service is synchronization. Consider the problems that might occur when trying to do a two-hour file transfer between two machines on a network with a 1 hour mean time between crashes. After each transfer was aborted, the whole transfer would have to start over again, and would probably fail again with the next network crash. To eliminate this problem, the session layer provides a way to insert checkpoints into the data stream, so that after a crash, only the data after the last checkpoint has to be repeated.

The Transport Layer

The basic function of the transport layer, is to accept data from the session layer, split it up into smaller units if need be, pass these to the network layer, and ensure that the pieces all arrive correctly at the other end. Furthermore, all this must be done efficiently, and in a way that isolates the session layer from the inevitable changes in the hardware technology.

Under normal conditions, the transport layer creates a distinct network connection for each transport connection required by the session layer. If the transport connection requires a high throughput, however, the transport layer might create multiple network connections, dividing the data among the network connections to improve throughput. On the other hand, if creating or maintaining a network connection is expensive, the transport layer might multiplex several transport connections onto the same network connection to reduce the cost. In all cases, the transport layer is required to make the multiplexing transparent to the session layer.

The transport layer also determines what type of service to provide to the session layer, and ultimately, the users of the network. The most popular type of transport connection is an error-free point-to-point channel that delivers messages in the order in which they were sent. However, other possible kinds of transport, service and transport isolated messages with no guarantee about the order of delivery, and broadcasting of messages to multiple destinations. The type of service is determined when the connection is established.

The transport layer is a true source-to-destination or end-to-end layer. In other words, a program on the source machine carries on a conversation with a similar program on the destination machine, using the message headers and control messages.

Many hosts are multi-programmed, which implies that multiple connections will be entering and leaving each host. There needs to be some way to tell which message belongs to which connection. The transport header is one place this information could be put.

In addition to multiplexing several message streams onto one channel, the transport layer musk take care of establishing and deleting connections across the network. This requires some kind of naming mechanism, so that process on one machine has a way of describing with whom it wishes to converse. There must also be a mechanism to regulate the flow of information, so that a fast host cannot overrun a slow one. Flow control between hosts is distinct from flow control between switches, although similar principles apply to both.

The Network Layer

The network layer is concerned with controlling the operation of the subnet. A key design issue is determining how packets are routed from source to destination. Routes could be based on static tables that are "wired into" the network and rarely changed. They could also be determined at the start of each conversation, for example a terminal session. Finally, they could be highly dynamic, being determined anew for each packet, to reflect the current network load.

If too many packets are present in the subnet at the same time, they will get in each other's way, forming bottlenecks. The control of such congestion also belongs to the network layer.

Since the operators of the subnet may well expect remuneration for their efforts, there is often some accounting function built into the network layer. At the very least, the software must count how many packets or characters or bits are sent by each customer, to produce billing information. When a packet crosses a national border, with different rates on each side, the accounting can become complicated.

When a packet has to travel from one network to another to get to its destination, many problems can arise. The addressing used by the second network may be different from the first one. The second one may not accept the packet at all because it is too large. The protocols may differ, and so on. It is up to the network layer to overcome all these problems to allow heterogeneous networks to be interconnected.

In broadcast networks, the routing problem is simple, so the network layer is often thin or even nonexistent.

The Data Link Layer

The main task of the data link layer is to take a raw transmission facility and transform it into a line that appears free of transmission errors in the network layer. It accomplishes this task by having the sender break the input data up into data frames (typically a few hundred bytes), transmit the frames sequentially, and process the acknowledgment frames sent back by the receiver. Since the physical layer merely accepts and transmits a stream of bits without any regard to meaning of structure, it is up to the data link layer to create and recognize frame boundaries. This can be accomplished by attaching special bit patterns to the beginning and end of the frame. If there is a chance that these bit patterns might occur in the data, special care must be taken to avoid confusion.

The data link layer should provide error control between adjacent nodes.

Another issue that arises in the data link layer (and most of the higher layers as well) is how to keep a fast transmitter from drowning a slow receiver in data. Some traffic regulation mechanism must be employed in order to let the transmitter know how much buffer space the receiver has at the moment. Frequently, flow regulation and error handling are integrated, for convenience.

If the line can be used to transmit data in both directions, this introduces a new complication that the data link layer software must deal with. The problem is that the acknowledgment frames for A to B traffic compete for the use of the line with data frames for the B to A traffic. A clever solution ( piggybacking ) has been devised.

The Data Link Layer : Error Control

A noise burst on the line can destroy a frame completely. In this case, the data link layer software on the source machine must retransmit the frame. However, multiple transmissions of the same frame introduce the possibility of duplicate frames. A duplicate frame could be sent, for example, if the acknowledgment frame from the receiver back to the sender was destroyed. It is up to this layer to solve the problems caused by damaged, list, and duplicate frames. The data link layer may offer several different service classes to the network layer, each of a different quality and with a different price.

The Data Link Layer : Piggybacking

In most practical situations, there is a need for transmitting data in both directions. One way of achieving full-duplex data transmission would be to have two separate communication channels, and use each one for simplex data traffic (in different directions). If this were done, we would have two separate physical circuits, each with a "forward" channel (for data) and a "reverse" channel (for acknowledgment). In both cases the bandwidth of the reverse channel would be almost entirely wasted. In effect, the user would be paying the cost of two circuits but only using the capacity of one.

A better idea is to use the same circuit for data in both directions. In this model the data frames from A to B are intermixed with the acknowledgment frames from A to B. By looking at the "kind" field in the header of an incoming frame, the receiver can tell whether the frame is data or acknowledgment.

Although interweaving data and control frames on the same circuit is an improvement over having two separate physical circuits, yet another improvement is possible. When a data frame arrives, instead of immediately sending a separate control frame, the receiver restrains itself and waits until the network layer passes it the next packet. The acknowledgment is attached to the outgoing data frame. In effect, the acknowledgment gets a free ride on the next outgoing data frame. The technique of temporarily delaying outgoing acknowledgment so that they can be hooked onto the next outgoing data frame is widely known as piggybacking.

The Physical Layer

The physical later is concerned with transmitting raw bits over a communication channel. The design issues have to do with making sure that when one side sends a 1 bit, it is received by the other side as a 1 bit, not as a 0 bit. Typical questions here ar e how many volts should be used to represent a 1 and how many for a 0, how many microseconds a bit lasts, whether transmission may proceed simultaneously in both directions, how the initial connection is established and how it is torn down when both sides are finished, and how many pins the network connector has and what each pin is used for. The design issues here deal largely with mechanical, electrical, and procedural interfaces, and the physical transmission medium, which lies below the physical layer. Physical layer design can properly be considered to be within the domain of the electrical engineer.
